Axis AVT3 gps tracker 4g not 3g
THIS IS A SUBSCRIPTION BASED UNIT THROUGH A THIRD PARTY COMPANY WHO SPECIALIZES IN MONITORING. $24pm is the required fee

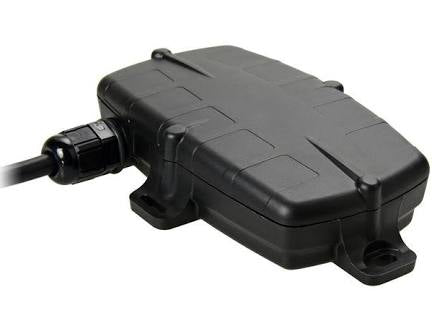

AXIS – AVT3 WIRELESS WEATHERPROOF GPS TRACKING DEVICE
- Network Type: 4G LTE
- Cellular Antenna: Internal
- APN: Auto APN Details Preloaded
- GPS Antenna: Internal
- GPS Tracking: High Sensitivity with 72CH GLONASS
- GPS Amplifier: Low Noise GPS Signal Booster (LNA)
- Built in accelerometer detects high G-force impact in accidents or rollovers.
- Reports the event to the server for emergency alerting.
- Wired ignition voltage on/off. Emulated ignition with GPS movement.
- Run detection when voltage increase
- Stores second by second recording of GPS & accelerometer data for 2 hour window.
- Data can be uploaded to the server when an accident is detected or can be done manually by request.
Logging Parameters Can be configured to log information based on the following parameters:
- Harsh driving (accelerometer)
- Distance travelled
- Change of direction
- Change of speed
- Time elapsed
- On but stationary
Harsh Driving using the 3-axis accelerometer to detect:
- Excessive acceleration
- Cornering speed
- Harsh braking
- Remote setup of the APN server and other details via TXT
Capacity to remotely set & store hundreds of geo-fencing:
- No Go & Keep out areas
- Arrival & Departure alerts
- Automatic Output Controls. e.g. switch on hazard lights
- Speeding Zones with Audible Alert
- Can be remotely switched to live tracking and reporting mode
- Can be set to use accelerometer and GPS data to intelligently sense if the vehicle is moving and send updates.
- Includes bank-level AES-256 authentication & data encryption
- Battery level monitoring
INPUTS & OUTPUTS
- 1 x Ignition (permanent internal pull down 0-50V)
- 2 x Digital (configurable internal pull down 0-50V)
- Analogue Inputs:
- 1 × 0-30V (shared with Digital input. i.e. only one can be used at a time)
- 1 Wire iButton reader for Driver-ID
- Digital Outputs:
- 1 x Switched Ground, ideal for external lights, relays, buzzers etc. (shared with Analogue input. i.e. only one can be used at a time)
- Off Line: Assist Now Offline data aid & extremely fast performance
- Memory: Internal with over 50,000 records while off line. Up to 14 days of memory storage.
- Battery: 1100mAh LiPo
- Vehicle: 8-36V DC
- Fuse: Self Re-setting Fuse. Passes stringent automotive power “load dump” tests
- Operating Temperature: -20° to +60°C
- Harness: 7 Wire
- Dimensions: 125L x 80W x 25H mm
