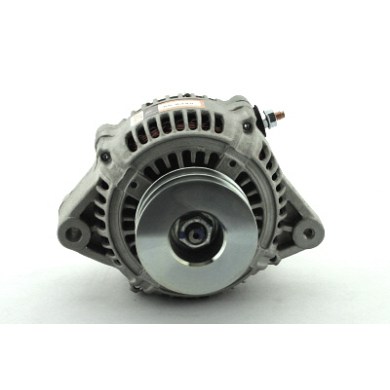

Alternator 12V 110A Denso-Type – Suits Toyota LandCruiser 1HZ / 1PZ / 1HD-T / 1HD-FT ( A1433)

Regular price ~~$313.00~~ $245.00 Sale

This 110A Denso-type alternator is a high-output replacement unit designed for Toyota LandCruisers running the 1HZ, 1PZ, 1HD-T and 1HD-FT diesel engines.

Built by Jaylec/Baxters (Part No. A1433), it delivers reliable charging performance for touring, heavy electrical loads, dual batteries and aftermarket accessories.

Includes the PL-43337 adaptor plug for plug-and-play installation on multiple LandCruiser platforms.

Key Specifications:

Voltage: 12V
Amperage: 110A
Type: Denso Style
Brand: Jaylec / Baxters
Model: A1433
Pulley: Twin-A grooves
Pulley Diameter: 78mm
Mount Type: Solid foot
Regulator Style: Internal (IN439 / IN453)
Plug Type: AP90
Adjuster Hole: M8 x 1.25P
Pivot Hole: 10.5mm
Adjuster–Pivot Length: 165mm
Solid Foot Length: 58mm
Shaft Diameter: 17mm
Size (LWH): 19 × 25 × 17 cm
Weight: 7kg
Included: PL-43337 adaptor plug

Suits the Following Toyota LandCruiser Models:

70 / 73 / 75 / 78 / 79 Series (1HZ & 1PZ)

HZJ70
HZJ73
HZJ75
HZJ78
HZJ79
PZJ70
PZJ73

75 Series Ute (1HZ)

HXJ75 / HZJ75R
(1990–1999)

78/79 Series Turbo Diesel (1HD-T)

HDJ78
HDJ79
(2001–2005)

80 Series (1HZ / 1HD-T)

HZJ80
HDJ80
FJ80 (3F-E engine listed but uncommon for this alternator)
(1990–1998)

100 / 105 Series (1HZ & 1HD-FT)

HDJ100R (1HD-FT) 2002–2007
HZJ100R (1HZ) 1998–2002
HZJ105R (1HZ) 2002–2007
FZJ105 / HZJ105 (some trims)

Common Applications:

Touring setups
Dual battery systems
Winches, fridges, inverters
Heavy electrical loads
Replacing weak or original 30–25+ year old alternators

Benefits:

Direct bolt-in replacement
High output for accessories and aux systems
Reliable Jaylec/Baxters build quality
Designed for harsh Australian conditions
Includes adaptor plug for correct electrical connection
