Terrain Tamer GBK4/TK5 gearbox and transfer case overhaul kit for applicable Toyota LandCruiser H55F 5-speed manual gearboxes and later split transfer cases.

Vehicle suitability

Terrain Tamer lists GBK4/TK5 for applicable H55F-equipped 60 and 70 Series LandCruisers from approximately October 1985, including FJ60/FJ62, HJ60/HJ61/HJ62, BJ70/BJ74/BJ75, FJ70/FJ73/FJ75 and HJ75 applications. The correct kit depends on the engine, gearbox and transfer case fitted; model years vary.

Transfer-case check: this version is generally associated with the later 38 mm transfer-case idler shaft. That is a fitment measurement, not a shaft supplied with this overhaul kit.

Kit information

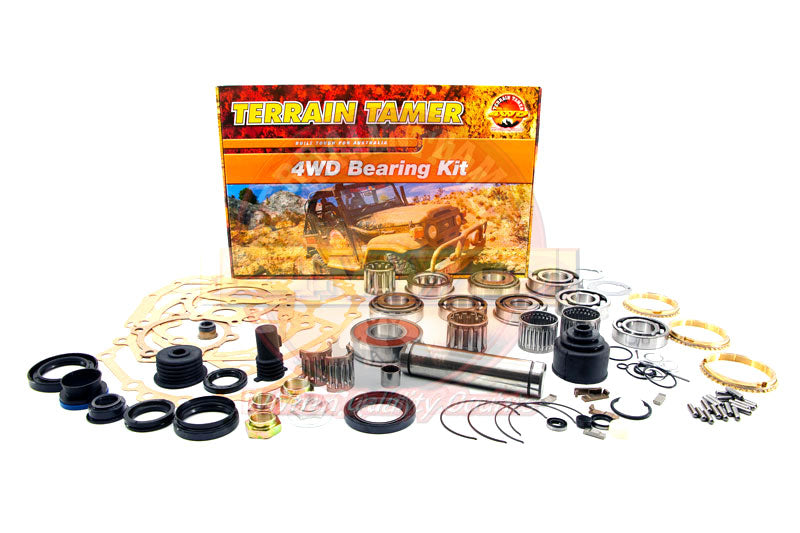

Combined gearbox and transfer case overhaul kit, including applicable bearings, seals, gaskets and synchroniser service components (such as cones, springs, keys and boot), as supplied by Terrain Tamer. The complete 1st/2nd synchroniser hub assembly is not included. Gearbox input and transfer-case idler shafts are not supplied.

Important fitment differences

  • Earlier H55F (approximately October 1982–October 1985): see Terrain Tamer GBK3/TK4, generally for the earlier 34 mm transfer-case idler-shaft version.
  • HZJ70 / HZJ73 / HZJ75 / HZJ77 with 1HZ engine (from January 1990): Terrain Tamer specifies GBK14/TK5 instead of GBK4/TK5.
  • HZJ78 / HZJ79 (from August 1999): Terrain Tamer specifies GBK8/TK13.

Note on splines: H55F clutch input shafts differ between engine versions (including coarse- and fine-spline types), but the clutch input shaft is not included in this rebuild kit. Do not select a kit by clutch spline count alone.

Please confirm chassis/build date, engine, gearbox and transfer-case specification before ordering. Contact CMS 4x4 if your vehicle has had a gearbox or transfer-case conversion.
