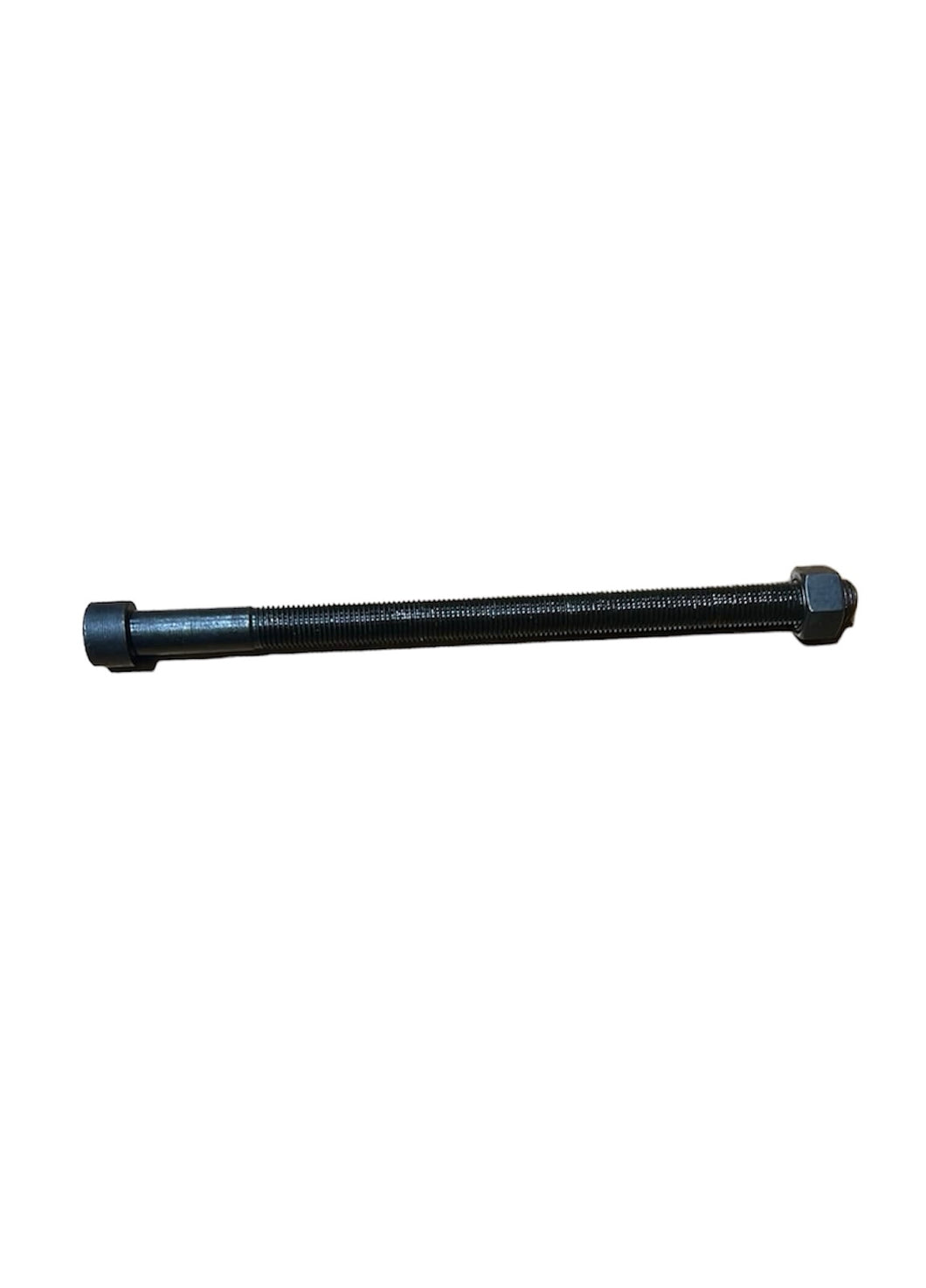

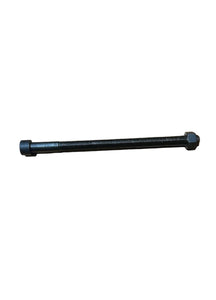

Parabolic leaf spring locating pin

Terrain Tamer locating pin for parabolic leaf spring assemblies.

Aligns the leaf spring pack to the axle housing for correct suspension positioning.



This locating pin (centre bolt) is used to secure and align the leaf spring pack to the axle.



It passes through the centre of the spring pack and locates into the axle seat, ensuring the spring and axle remain correctly positioned.



Its role is critical for:



• Maintaining axle alignment
• Preventing spring movement
• Keeping correct wheelbase and tracking





Without a proper locating pin, the spring pack can shift under load, affecting handling and safety.



This pin is specifically designed for use with Terrain Tamer parabolic leaf springs and is built to handle off-road and load conditions.









What happens when it fails





Common scenarios:



• Pin shears under load
• Spring pack shifts on axle
• Vehicle sits out of alignment
• Clunk or movement under acceleration/braking





Worst case:

axle moves on the spring









Vehicle Compatibility





• Suits Terrain Tamer parabolic leaf spring setups
• Common on:

• LandCruiser 75 / 78 / 79 Series
• Other vehicles running parabolic conversions











Common Questions





What does this pin actually do?

Locates the leaf spring to the axle and keeps everything aligned.



Is this just a bolt?

No — it’s a centre locating pin designed for suspension use.



Can I reuse the old one?

Not recommended if removed — they can stretch or fatigue.



Is this specific to parabolic springs?

Yes — designed to suit parabolic leaf packs.



Terrain Tamer Parabolic Leaf Spring Locating Pin



The Terrain Tamer Parabolic Leaf Spring Locating Pin is a vital component designed to securely align the leaf spring assembly to the axle, ensuring optimal stability, alignment, and handling for your vehicle. Precision-engineered to meet Terrain Tamer’s high-quality standards, this locating pin is crafted from durable materials to withstand heavy loads and harsh conditions encountered in off-road and everyday applications.



Features:



• Durable Construction: Built for longevity, providing excellent resistance to wear and corrosion.

• Precision Fit: Ensures accurate alignment between the parabolic leaf springs and axle housing.

• Vehicle Compatibility: Specifically designed for Terrain Tamer’s parabolic leaf spring systems.

• Easy Installation: Direct replacement for seamless integration with existing leaf spring assemblies.



Applications:

Ideal for off-road vehicles, 4x4s, and commercial vehicles equipped with Terrain Tamer parabolic leaf springs, this locating pin ensures the suspension system operates smoothly and reliably.



Note: Always verify compatibility with your vehicle’s specific make and model before purchasing.
