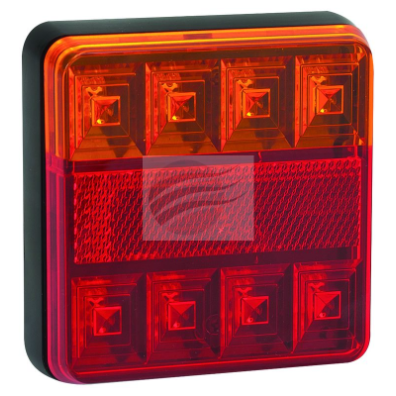

101 Series LED Combination Stop / Tail / Indicator Lamp 12 Volt
Red and Amber Illumination
4 x High Intensity Red LED's and 4 x High Intensity Amber LED's
Red and Amber Optical Hardened Acrylic Lens with unique Square lens pattern and inbuilt Retro Reflector
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.13amps at 12 Volt Current Draw for Stop function
0.04amps at 12 Volt Current Draw for Tail function
0.12amps at 12 Volt Current Draw for Indicator function
ECE 02-R1-S1 Rear Stop Lamp specifications approved- CRN 6444
ECE 01-2a Rear Indicator Lamp specifications approved- CRN 6444
ECE E9-01-2a Reflector specifications approved- CRN 6444
Refer to ADR 13/00 for mounting instructions

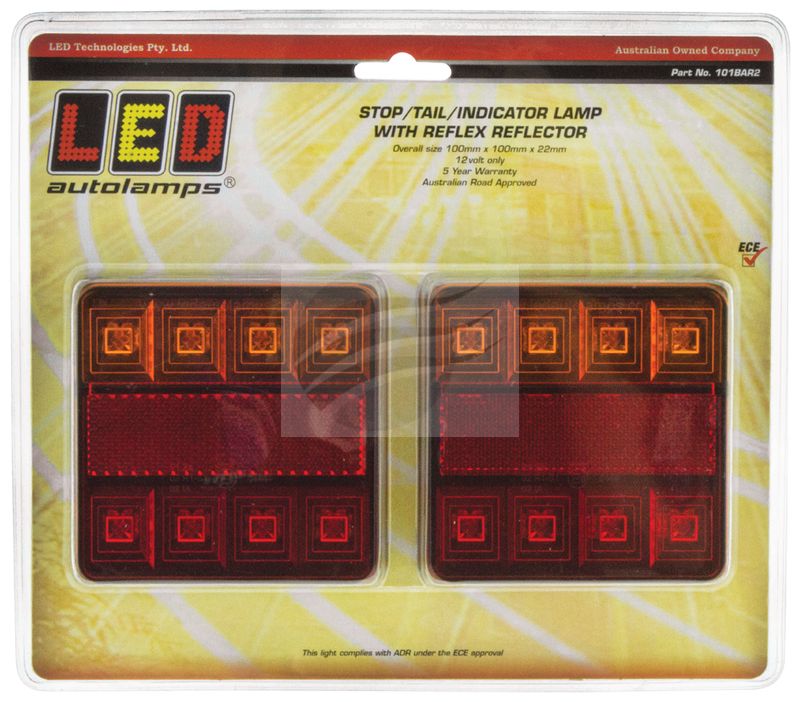

Blister Qty: 2
5 Year Warranty
Spare Parts:-
LP101 Licence Lamp frame
