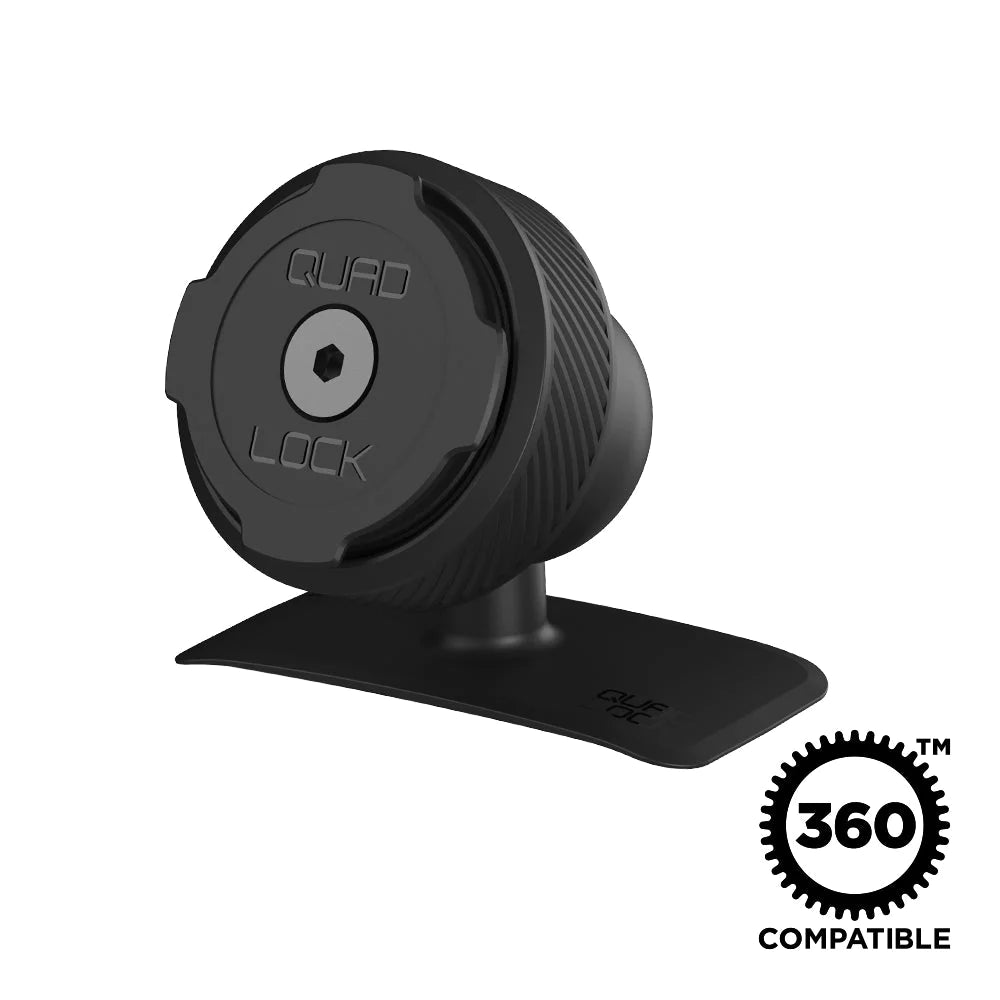

Suitable for use with all Quad Lock® Cases and Universal Adaptors, the Quad Lock® Adhesive Dash / Console Car Mount offers a versatile mounting solution with it's slimline adhesive base and pivot head.
SECURE MOUNTING

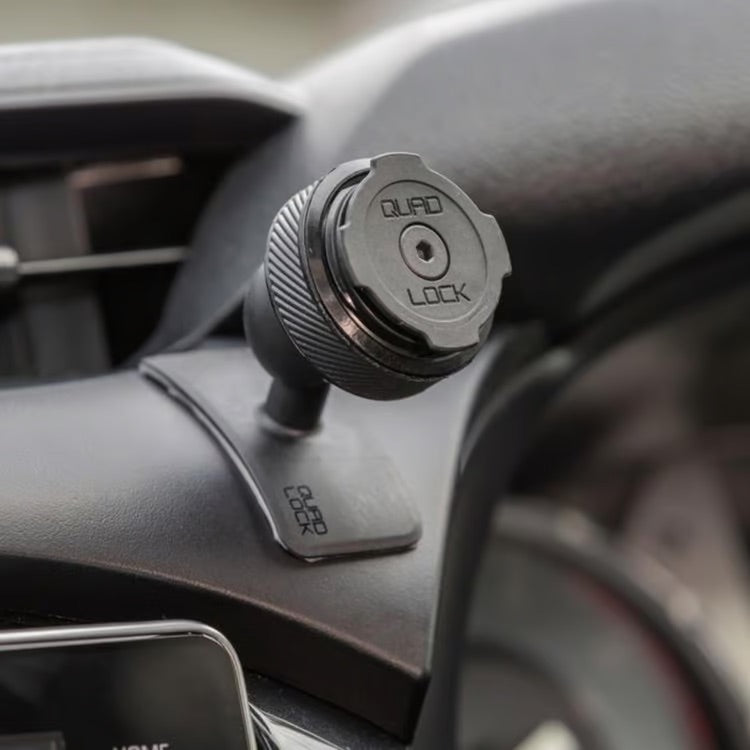

With 3M VHB adhesive and a flexible base, the Dash / Console mount can adhere to flat and slightly curved surfaces. See our recommended surface guidelines for more information to choose the correct surface and mounting angle.
ADJUSTABLE VIEWING ANGLE

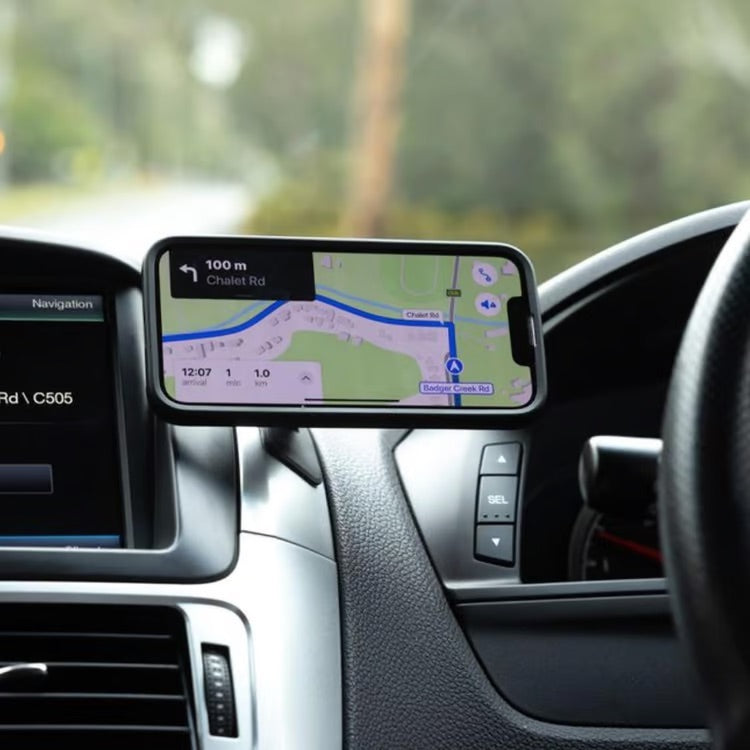

The single pivot ball joint allows for 180º head articulation in the Z axis and 360º rotation around the base. Mounting your phone in the optimal viewing position is simple.
SLEEK DESIGN
Slim profile base and black hardware will cleanly integrate with your car's interior.
MAG & WIRELESS CHARGING (OPTIONAL)

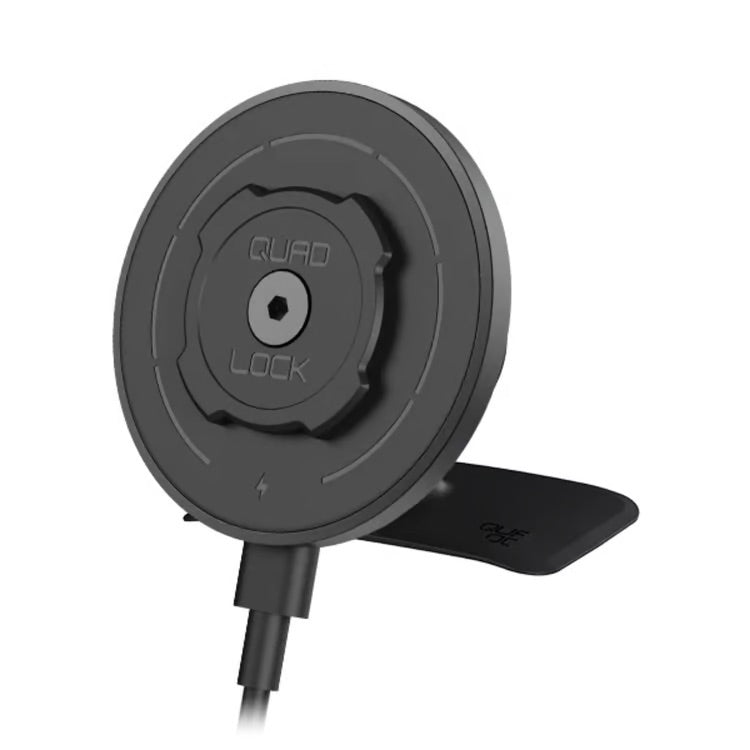

Upgrade your Mount with one of our two Quad Lock MAG™ Heads and make mounting your phone even easier. Add the Quad Lock MAG™ Wireless Charging Head or Quad Lock® Original Wireless Charging Head and always keep your phone battery in the green, no matter the adventure.
Quad Lock MAG™ Case or MAG Universal Adaptor required for use with MAG Heads. Universal Adaptors not compatible with Wireless Charging Heads.
Includes:
- 1 x Quad Lock® Adhesive Dash/Console Car Mount
- 1 x Quad Lock 360™ Top Cap
- 1 x Spare 3m VHB Adhesive Pad
- 1 x Alcohol wipe

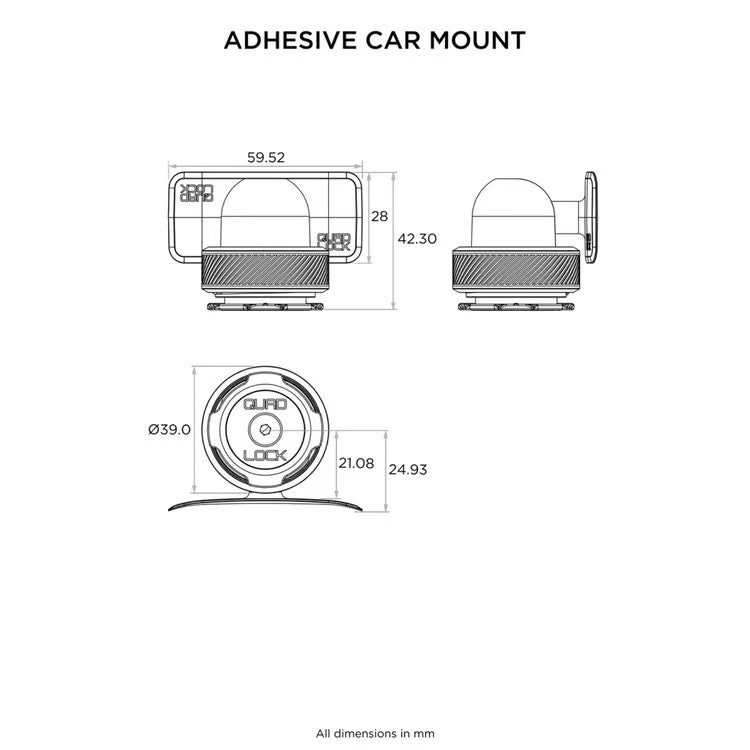

Tech Specs:
ADHESIVE DASH / CONSOLE MOUNT
- Glass filled nylon
- TPU ball overmold
- 3M VHB Adhesive
- Compatible with all Quad Lock® Cases and Universal Adaptors
- Compatible with Quad Lock® Wireless Charging Head
- Compatible with all Quad Lock MAG™ Heads
MAG HEAD
- Glass filled nylon housing
- Black zinc coated stainless steel screw
- 2mm thick Neodymium 52H nickel plated magnets
- Compatible with Quad Lock MAG™ Cases and Quad Lock MAG™ Universal Adaptor
WIRELESS CHARGING HEAD
- Output: 5, 7.5 and 10 Watt fast charging (iPhone up to 7.5W)
- Input: 5V-2A, 9V-1.7A
- Secure positive locking head
- Glass filled nylon front housing
- Anodised black aluminium rear housing
- Foreign object detection
- Compatible with all Quad Lock® Cases
MAG WIRELESS CHARGING HEAD
- Output: 5W, 7.5W, 10W and 15W fast charging (iPhone up to 7.5W)
- Input: 5V-3A, 9V-2A, 12V-1.5A
- Glass filled nylon front housing
- Anodised aluminium rear housing
- Thermal protection to prevent overheating
- Foreign objection detection
- Black zinc coated stainless steel screw
- 2mm thick Neodymium 52H nickel plated magnets
- Compatible with Quad Lock MAG™ Cases
-
Please Note:
* The Galaxy S21, S20 and Note20 ranges will charge wirelessly at a maximum of 5W
Surface Guidelines:
The Quad Lock® Adhesive Dash/Console Mount uses a 3M™ VHB 5611 Adhesive which will adhere to smooth, non-textured, non-porous surfaces such as:
- Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. car dash or console)
- Un-coated glass (eg windshield)
- Metals
- Fibreglass
The adhesive will not bond to the following substrates:
- Rubber, TPU, TPE
- Leather
- Silicone
- Soft touch coating or paint
- Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
Application temperature:
- Ideal application temperature is between 21ºC (70ºF) to 38ºC (100ºF)
- It is not recommended to adhere the mount in temperatures below 10ºC (50ºF)
Please ensure the substrate is thoroughly cleaned and dry before applying the Dash/Console Mount.
The 3M™ VHB™ is a single use adhesive and is not reusable.
The Dash/Console Mount is not recommended for use on motorcycles, scooters, ATVs, or other high frequency engine vibrations applications.
