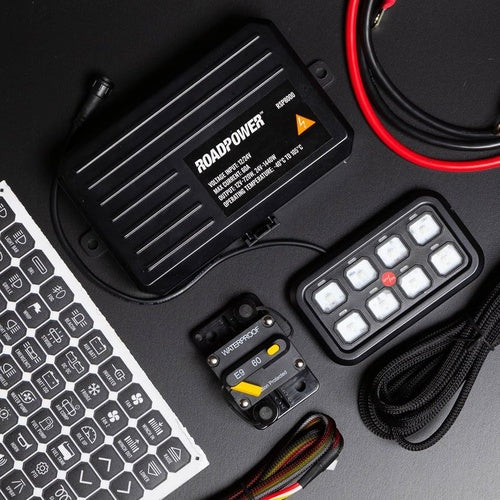

ROAD VISION - ROADPOWER IN-CAR AUXILARY SWITCH PANEL
Switch Panel 8 Way 10-30V 60A Continuous On/Off or Momentary Programmable with 2 High Beam Inputs.
The Roadpower in-car auxiliary switch panel provides a user-friendly interface to control up to 8 switchable components including auxiliary lighting, winch systems and battery setups.
With soft amber backlit buttons that support on/off or momentary functions and a simple DIY installation, the Roadpower RSP8000 is versatile and customisable with 70 included switch decals to suit most applications.
FEATURES
- 8 User Programmable Switches
- 70 User Selectable Switch Decals
- Simple DIY Installation
- Master On/Off Override
- Red LED Switch Status Indicator
- Amber Backlit Switch Panel
- LED Fuse Indicator
- Optional High Beam Output
- Solid State Power Module
- 8 x 25A Outputs
- 2 x High Beam Circuits
SPECS
- Temperature Rating - -40°C to +105°C
- Voltage Input - 10-30V DC
- Backlight Colour - Amber
- Standby Current - <100mA
- Warranty - 2 Years
- Backlit Dimming - Automatic/Bright/Dim
- High Beam Input - Positive or Negative Switched
- Maximum Output - 60A Continuous
- Per Circuit Output - 25A Max Without External Relay
- Master On/Off Switch - Yes
- LED Indicator Color - Red
- High Beam Active Switches - 0 or 2 (1&5)
