Zeal 12v 100ah lithium batter

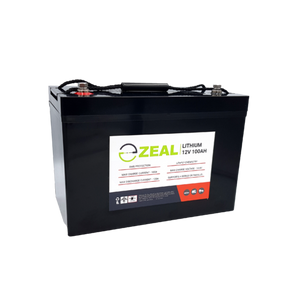

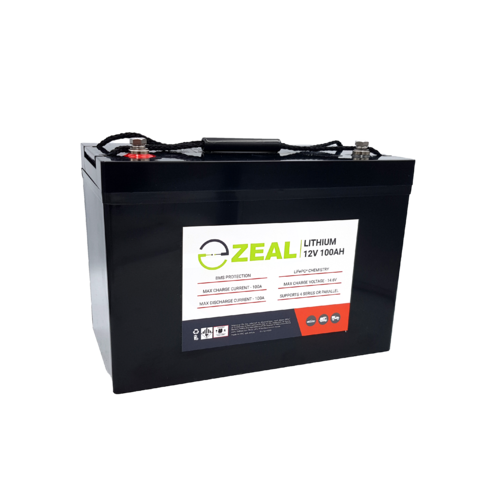

ZEAL 12V 100AH LIFEPO4 LITHIUM BATTERY

Zeal lithium is an economical 12V Lithium Iron Phosphate (LiFePO4) solution by Sealed Performance Batteries (SPB) which provides the core performance and safety advantages of a modern lithium battery in a sturdy design.

Backed by SPB, a company with over 25 years of experience in the energy storage industry, and designed to the best possible specifications, you can be confident that Zeal lithium has had every detail thoroughly examined in delivering a high-value solution.

Safe And Stable
Zeal provides a high degree of safety by utilising light-weight aluminium encased LiFePO4 prismatic cells, which are among the safest and most stable lithium cells available. It is also supported by an integrated BMS that protects against overcharge/discharge, temperature and short circuit events for complete confidence when in operation.

Core Lithium Advantages
A perfect AGM replacement, Zeal comes complete with a 3-year warranty and all the features you would expect from a LiFePO4 product including fast recharge capabilities, low self-discharge rate, long runtime and more usable capacity for power when you need it most.

Specifications:

• Nominal Voltage: 12.8V
• Nominal Capacity (25oC, 0.33C):100Ah
• Dimensions: 306mm  X 167mm x 211mm
• Weight: 12.8kg
• Terminal type: M8
• Max Charge Voltage: 14.6V±0.2V
• Standby Voltage: 13.8±0.2V
• Cut-off Voltage: 10V
• Max. Discharge Current: 100A
• Max Pulse Discharge Current (3 sec):300A
• Max Charge Current: 100A
• Recommended Charge Current: < 50A
• Cycle Life (100% DoD): 1800+
• Operating Temp - Charge: 0oC - 45ºC
• Operating Temp - Discharge: -20ºC - 60ºC
• Short Circuit Release: Yes
• Max. Series / Parallel Configuration: 4S or 4P
• Cell Type: Prismatic
• Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
• BMS Protection: Yes
